Bell-manufactured cylinders
Optimized tine geometry for timber grip
Non-swivel pins reduce bush wear

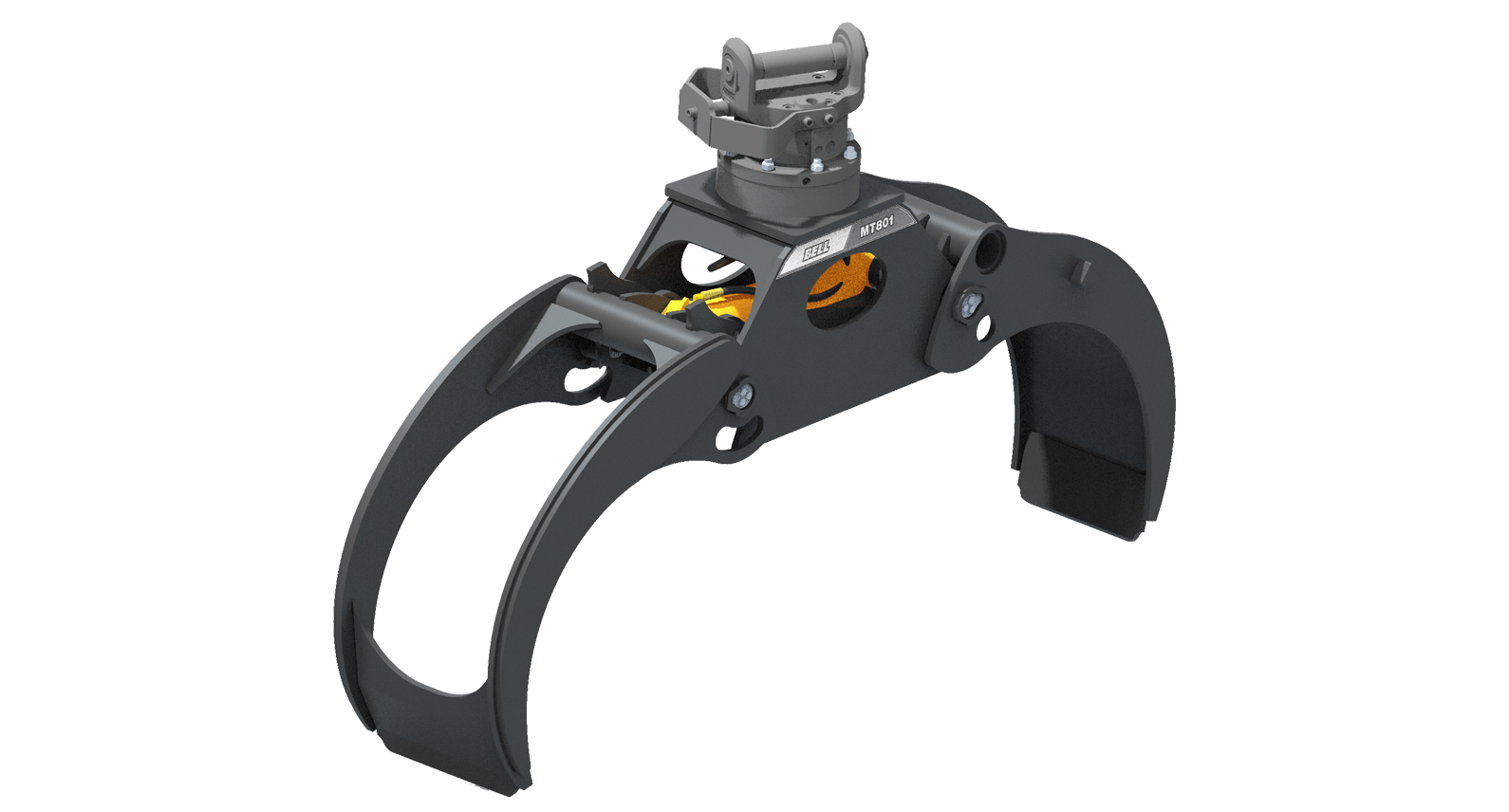

With longevity built into the robust structure, Bell Grapples are designed to be efficient loading tools for timber and general material handling applications. They are suitable for a variety of purpose-built and hybrid carriers weighing 7,5t to 40t and cross-cut saw options are available in certain sizes. Our timber grapples have a nose cone option, either with an internally routed link or standard link. The internal link limits damage caused by impact with logs, or debris to hydraulic lines during loading by allowing hoses to be routed from the carrier to the grapple with minimal external exposure for higher component life.
⢠MT500 LB: | |
Area | Weight | Rotator model | Typical carrier size (but not limited to) | 0,5 m² | 430 kg | Indexator GV12/17 | 7-14 t |
⢠MT600 LB: | |
Area | Weight | Rotator model | Typical carrier size (but not limited to) | 0,6 m² | 531 kg | Indexator GV12/17 | 14-20 t |
⢠MT800 LB: | |
Area | Weight | Rotator model | Typical carrier size (but not limited to) | 0,8 m² | 561 kg | Indexator GV12/17 | 20-26 t |
⢠MT501: | |
Area | Weight | Rotator model | Typical carrier size (but not limited to) | 0,5 m² | 800 kg | Indexator XR350 | 7-14 t |
⢠MT601: | |
Area | Weight | Rotator model | Typical carrier size (but not limited to) | 0,6 m² | 915 kg | Indexator XR350 | 14-20 t |
⢠MT801: | |
Area | Weight | Rotator model | Typical carrier size (but not limited to) | 0,8 m² | 998 kg | Indexator XR350 | 20-26 t |
⢠MT1000: | |
Area | Weight | Rotator model | Typical carrier size (but not limited to) | 1,0 m² | 1 125 kg | Indexator XR400 | 26-30 t |
⢠MT1200: | |
Area | Weight | Rotator model | Typical carrier size (but not limited to) | 1,0 m² | 1 310 kg | Indexator XR400 | 26-30 t |
⢠MT1800: | |
Area | Weight | Rotator model | Typical carrier size (but not limited to) | 1,0 m² | 1 489 kg | Indexator IR22 | 30-38 t |
⢠MT2250: | |
Area | Weight | Rotator model | Typical carrier size (but not limited to) | 1,0 m² | 2 426 kg | Indexator XR500 | 38-52 t |
