Agricultural Bachoe Loaders, Bell South Africa

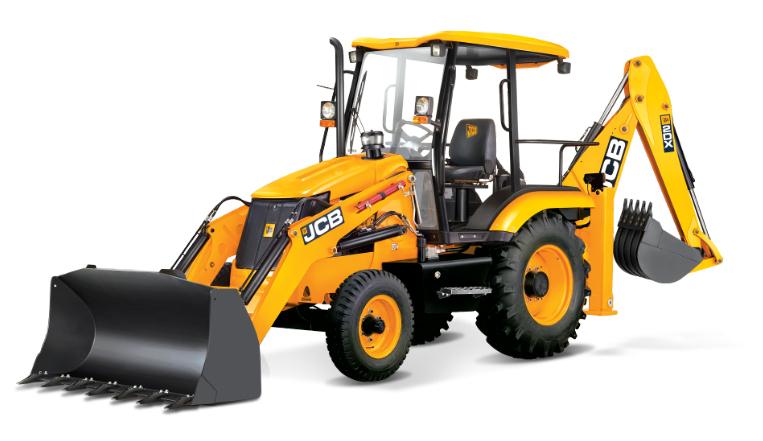

2DX

Maximum Dig Depth: 3,02 m
Gross Power: 36,9 kW @ 2 200 rpm
Maximum Shovel Capacity: 0.55 m³

Overview
Technical Data
Solutions
Customer Experience
Request a quote

Overview

It’s no wonder that JCB backhoes are by far the most popular throughout Africa and the rest of the world (almost half of all backhoes on the planet are JCBs). We were, after all, the first company to develop the concept of a backhoe loader.

Longer life > Higher residual values

technical Data

EngineKOEL 4R810, Naturally aspirated, 4 cylinders
Gross Power36.9kW @ 2 200 rpm
Net Torque203 Nm @ 1 400 rpm
Emission RatingTier 3
TransmissionJCB Synchro-shuttle transmission
TyresFront: 10 x 16.5 x 8
Rear: 17.5 x 5 x 24 x 8
Bucket - StandardLoader: 6 in 1, 0.55 m³ bucket
Backhoe: 0.18 m³ (400 mm wide)
Backhoe ArmStandard fixed dipper
Cabin Canopy with glass screen & wiper
Hydraulic SupplyNone
Loader Breakout Force2 610 kgf
Backhoe Digging Force 3 120 kgf
TelematicsLivelink Standard
Operating Weight4 530 kg
Length/Height/Width5 500/2 650/1 880 mm
Standard Warranty12 months, unlimited hours
Standard Fitted Options6-in-1 bucket
