Wheel Loaders, Bell South Africa

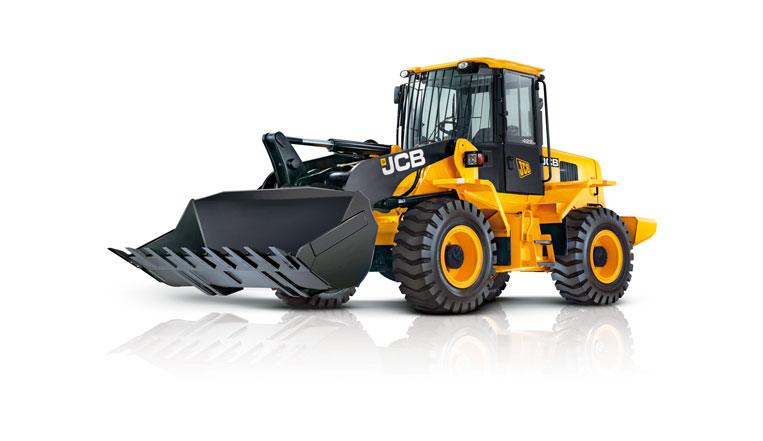

422ZX Wheel Loaders

Net Torque: 525 Nm @ 1 300 rpm
Gross Power: 93 kW (125 hp)
Operating Weight: 11 900 kg

Overview
Technical Data
Solutions
Customer Experience
Request a quote

Overview

The JCB 422ZX is designed to withstand all the hard work you can throw at it. We’ve stress and climate-tested it, and fitted only premium components to guarantee durability.

Longer life > Higher residual values







technical Data

EngineJCB Diesel by Kohler - KDI 2504 M
Gross Power93 kW
Net Torque525 Nm @ 1 300 rpm
Emission RatingTier 2
TransmissionAuto Powershift, 4 Forward, 3 Reverse gears
Tyres17.5 x 25, 20 Ply, L3 Bias
Attachment1.7 m³ Bucket
Tipping LoadStraight: 7 500 kg
Tipping LoadFull turn: 6 600 kg
Breakout Force102 kN
Pin Height3 794 mm
CabinEnclosed, AC, ROPS/FOPS certified
TelematicsLivelink Standard
Operating Weight11 900 kg
Length/Height/Width6 720/3 156/2 290 mm
Standard Warranty12 months, unlimited hours
Standard Fitted OptionsLimited slip differential, reverse fan,
joystick controls, additional hydraulic function
