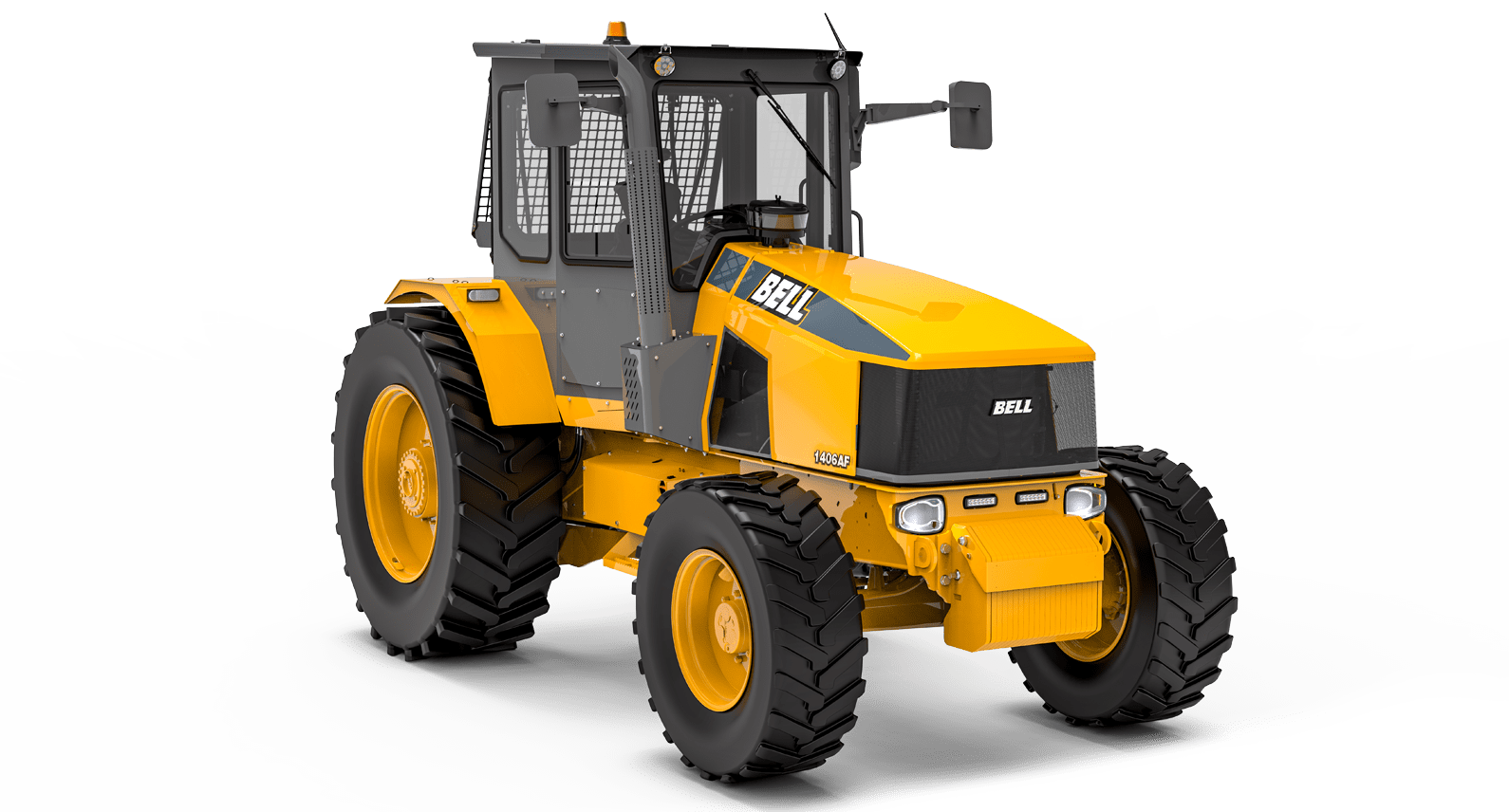

Haulage Tractors

1736A/AF

Net Power:Ā 129 kW
1736A – Operating Weight: 6 053 kg
1736AF –Ā Operating Weight 7 076 kg

Overview
Customer Review
Technical Data
Videos

Overview

From 140 hp to 200 hp and choices between 2WD and 4WD units, your haulage needs are well taken care of. A strong John Deere engine coupled to an automatic Allison transmission will take whatever, wherever!

technical Data

Engine John Deere 6068HF285
Net Power 129 kW
Transmission Allison #3000
Electrical System 24 V
Cab ROPS/FOPS certified, rubber mounted
Fluid Capacity
ā€¢ Hydraulic oil120 L
ā€¢ Diesel fuel160 L
Operating Weight
ā€¢ 1736A6 053 kg
ā€¢ 1736AF7 076 kg
Length / Width / Height
ā€¢ 1736A4 697 / 2 510 / 3 104 mm
ā€¢ 1736AF4 844 / 2 510 / 3 104 mm
TelematicsFleetm@ticĀ® optional
Standard Fitted Options
ā€¢ Front wheelset: 1736A315/80R22.5,Goodyear
ā€¢ Front wheelset: 1736AF420/70R24 Trelleborg, TM700
ā€¢ Rear wheelset: 1736A600/65R38, Michelin
ā€¢ Rear wheelset: 1736AF580/70R38 Trelleborg, TM700
Ball hitch, 2aux
Additional OptionsBelly plates
Trainer seat
Long range fuel tank
High flow hydraulic system
Bull bar
Hi-flow
