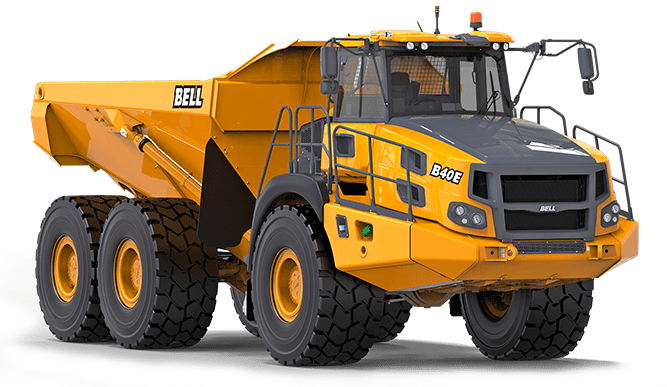

B40E ADT S5

Maximum Net Power: 380 kW (510 hp)
Rated Payload: 39 000 kg (85 980 lb)
Operating Weight: 71 456 kg (157 533 lb)

Overview
Technical Data
Solutions
Customer Experience
Request a quote

Overview

Apart from providing best in class off-road ability, Bell Trucks provide
on board weighing and remote production monitoring to promote the best
possible productivity.

Longer life > Higher residual values

• Click to view the range of ADT Custom Load Bodies

• Click to view the PDS/CAS ready brochure



technical Data

EngineMercedes Benz OM471LA (MTU 6R 1300)
Maximum Net Power380 kW (510 hp) at 1 600 rpm in accordance with UN ECE R120
CertificationOM471LA (MTU 6R 1300) meets EU Stage V / EPA Tier 4 Final emissions regulations
TransmissionsAllison 4700 ORS
RetardationWet Brakes
Rated Payload39 000 kg (85 980 lb)
Body Capacity SAE 2:124 m³ (31 yd³)
Unladen Weight32 455 kg (71 551 lb)
Laden Weight71 456 kg (157 533 lb)
Standard Tyre Size29.5 R25
Option Tyre Size875/65 R29
Onboard WeighingStandard
Fleetm@tic® TelematicsStandard
i-TipStandard
Automatic Turbo SpindownStandard
Tip SafeStandard
Neutral Park BrakeStandard
Front Comfort RideStandard
