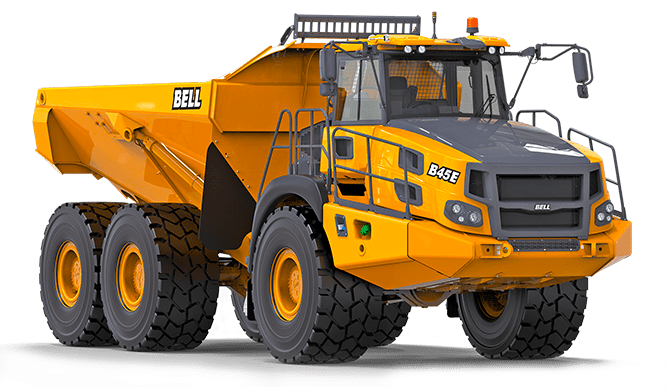

» Mining & Construction » Products » 6×6 Articulated Dump Trucks » B45E ADT S5
Maximum Net Power: 390 kW (523 hp)
Rated Payload: 41 000 kg (90 390 lb)
Operating Weight: 74 053 kg (163 258 lb)
Apart from providing best in class off-road ability, Bell Trucks provide
on board weighing and remote production monitoring to promote the best
possible productivity.
Longer life > Higher residual values
• Click to view the range of ADT Custom Load Bodies
• Click to view the PDS/CAS ready brochure
Engine | Mercedes Benz OM471LA (MTU 6R 1300) |
Maximum Net Power | 390 kW (523 hp) at 1 600 rpm in accordance with UN ECE R120 |
Certification | OM471LA (MTU 6R 1300) meets EU Stage V / EPA Tier 4 Final emissions regulations |
Transmissions | Allison 4700 ORS |
Retardation | Wet Brakes |
Rated Payload | 41 000 kg (90 390 lb) |
Body Capacity SAE 2:1 | 25 m³ (32.7 yd³) |
Unladen Weight | 33 052 kg (72 867 lb) |
Laden Weight | 74 053 kg (163 258 lb) |
Standard Tyre Size | 29.5 R25 |
Option Tyre Size | 875/65 R29 |
Onboard Weighing | Standard |
Fleetm@tic® Telematics | Standard |
i-Tip | Standard |
Automatic Turbo Spindown | Standard |
Tip Safe | Standard |
Neutral Park Brake | Standard |
Front Comfort Ride | Standard |
