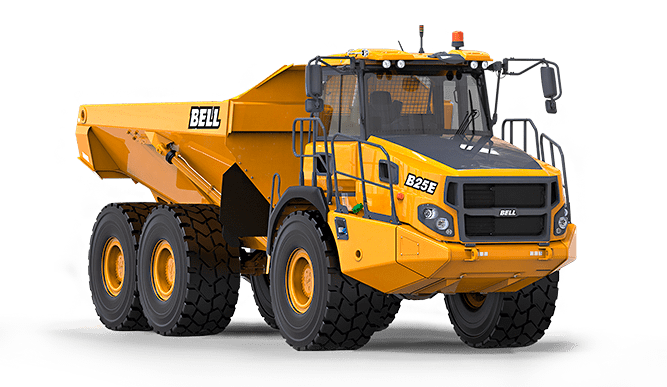

» Mining & Construction » Products » 6×6 Articulated Dump Trucks » B25E ADT S5
Maximum Net Power: 210 kW (281 hp)
Rated Payload: 24 000 kg (52 911 lb)
Operating Weight: 43 186 kg (95 209 lb)
Apart from providing best in class off-road ability, Bell Trucks provide
on board weighing and remote production monitoring to promote the best
possible productivity.
Longer life > Higher residual values
Engine | Mercedes Benz OM936LA |
Maximum Net Power | 210 kW (281 hp) at 1 800 rpm in accordance with UN ECE R120 |
Certification | OM936LA meets EU Stage V / EPA Tier 4 Final emissions regulations. |
Transmissions | Allison 3500PR ORS |
Retardation | Transmission |
Rated Payload | 24 000 kg (52 911 lb) |
Body Capacity SAE 2:1 | 15 m³ (19.6 yd³) |
Unladen Weight | 19 186 kg (42 298 lb) |
Laden Weight | 43 186 kg (95 209 lb) |
Standard Tyre Size | 23.5 R25 |
Option Tyre Size | 750/65 R25 |
Onboard Weighing | Standard |
Fleetm@tic® Telematics | Standard |
i-Tip | Standard |
Automatic Turbo Spindown | Standard |
Tip Safe | Standard |
Neutral Park Brake | Standard |
Front Comfort Ride | Standard |
