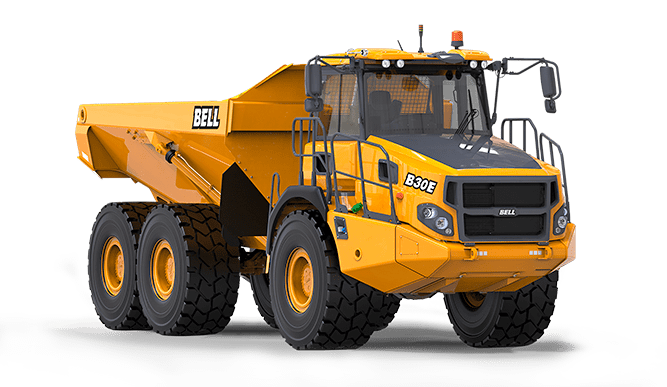

» Mining & Construction » Products » 6×6 Articulated Dump Trucks » B30E ADT S5
Maximum Net Power: 260 kW (348 hp)
Rated Payload: 28 000 kg (61 729 lb)
Operating Weight: 49 155 kg (108 369 lb)
Apart from providing best in class off-road ability, Bell Trucks provide
on board weighing and remote production monitoring to promote the best
possible productivity.
Longer life > Higher residual values
Engine | Mercedes Benz OM936LA |
Maximum Net Power | 260 kW (348 hp) at 1 800 rpm in accordance with UN ECE R120 |
Certification | OM936LA meets EU Stage V / EPA Tier 4 Final emissions regulations |
Transmissions | Allison 3400P ORS |
Retardation | Wet Brakes |
Rated Payload | 28 000 kg (61 729 lb) |
Body Capacity SAE 2:1 | 17,5 m³ (22.9 yd³) |
Unladen Weight | 21 155 kg (46 639 lb) |
Laden Weight | 49 155 kg (108 369 lb) |
Standard Tyre Size | 23.5 R25 |
Option Tyre Size | 750/65 R25 |
Onboard Weighing | Standard |
Fleetm@tic® Telematics | Standard |
i-Tip | Standard |
Automatic Turbo Spindown | Standard |
Tip Safe | Standard |
Neutral Park Brake | Standard |
Front Comfort Ride | Standard |
