Net Engine Output: 209 kW (280 hp)
Peak Engine Torque: 1 424 Nm (1 050 lbft)
Typical Operating Weight: 21 638 kg

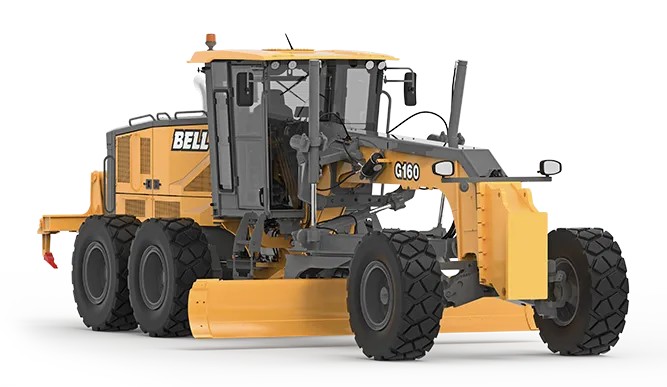

The Bell Motor Grader delivers precision, durability, and efficiency with its
advanced design.
Featuring a sealed slew ring, it ensures long-lasting performance with
minimal maintenance. The parallelogram ripper enhances ground penetration
and stability, making tough jobs easier. Operators benefit from improved
visibility, allowing for greater accuracy and safety on the job site.
Combined with a smooth hydromechanical transmission, the Bell Motor Grader
offers seamless control and optimal power delivery, making it the ultimate
choice for superior grading performance.
DRIVELINE | |
Engine Manufacturer | Cummins QSL9 |
Emissions Level | Stage 3A |
Number Of Cylinders | 6 |
Displacement | 9 L (543 cu. in.) |
Engine Output - Net | 209 kW (280 hp) |
Peak Engine Torque | 1 424 Nm (1 050 lbft) @ 1 300 rpm |
Net Engine Power - Gear 1 | 209 kW (307 hp) |
Transmission | ZF CP230 cPower |
Number Of Speeds - Forward | Infinite |
Number Of Speeds - Reverse | Infinite |
WEIGHTS | |
Weight With Push Block & Ripper | 21 638 kg (47 704 lbs) |
Operating Weight - Maximum | 25 000 kg (55 116 lbs) |
Blade Pull at Normal Weight | 14 002 kg (30 870 lbs) |
Blade Pull at Maximum Weight | 15 750 kg (34 723 lbs) |
OPTIONS | |
Reversing fan | Standard |
Fleetm@tic Telematics | Standard |
Automatic Turbo Spindown | Standard |
WHEELSET | Standard: 17,5R25 |
Optional: 550/65R25 | |
MOLDBOARD | Standard: 14 ft x 27 in |
Optional: 14 ft x 24 in |
