Net Engine Output: 229 kW (307 hp)
Peak Engine Torque: 1 424 Nm
Operat. Weight: 25 000 kg / 55 116 lb

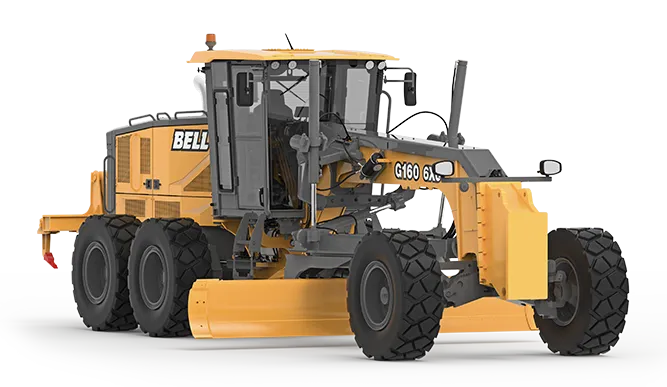

The Bell Motor Grader delivers precision, durability, and efficiency with its
advanced design.
Featuring a sealed slew ring, it ensures long-lasting performance with
minimal maintenance. The parallelogram ripper enhances ground penetration
and stability, making tough jobs easier. Operators benefit from improved
visibility, allowing for greater accuracy and safety on the job site.
Combined with a smooth hydromechanical transmission, the Bell Motor Grader
offers seamless control and optimal power delivery, making it the ultimate
choice for superior grading performance.
DRIVELINE | |
Engine Manufacturer | Cummins QSL9 |
Emissions Level | Stage 3A |
Number Of Cylinders | 6 |
Displacement | 9 L (543 cu. in.) |
Engine Output - Net | 229 kW (307 hp) |
Peak Engine Torque | 1 424 Nm (1 050 lbft.) @ 1 300 rpm |
Net Power - Gear 1 | 229 kW (307 hp) |
Transmission | ZF CP230 cPower |
Number Of Speeds - Forward | Infinite |
Number Of Speeds - Reverse | Infinite |
WEIGHTS | |
Weight With Push Block & Ripper | 22 328 kg (49 225 lbs) |
Operating Weight - Maximum | 25 000 kg (55 116 lbs) |
Blade Pull at Normal Weight | 20 095 kg (44 302 lbs) |
Blade Pull at Maximum Weight | 22 500 kg (49 604 lbs) |
OPTIONS | |
Reversing fan | Standard |
Fleetm@tic Telematics | Standard |
Automatic Turbo Spindown | Standard |
WHEELSET | Standard: 17,5R25 |
Optional: 550/65R25 | |
MOLDBOARD | Standard: 14 ft x 27 in |
Optional: 14 ft x 24 in |
