Net Power: 148 kW (198 hp)
Torque: 960 Nm (706 lbft)
Max Oper. Wt: 18 181 kg / 40 082 lb

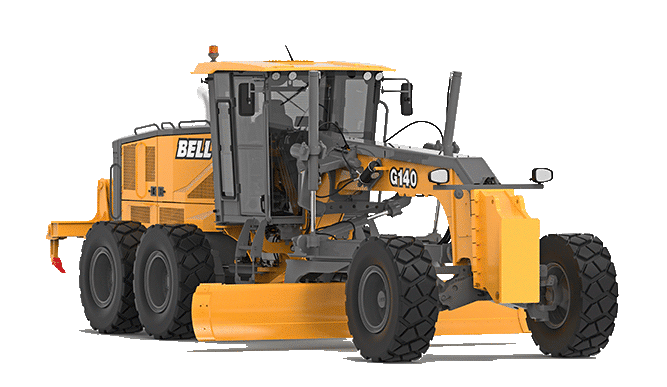

The Bell Motor Grader is built for precision, durability, and operator comfort,
featuring a sealed slew ring for enhanced blade control and longevity.
Its robust parallelogram ripper ensures efficient ground penetration and
superior material handling, making tough jobs easier. Designed with
improved visibility, the cab offers an unobstructed view of the moldboard
and worksite, enhancing safety and accuracy.
DRIVELINE | |
Engine Manufacturer | Cummins QSB6.7 |
Emissions Level | Stage 3A |
Number Of Cylinders | 6 |
Displacement, ltr (Inches³) | 6,7 L (409 cu. in.) |
Engine Output - Net, kW (hp) | 148 kW (198 hp) |
Peak Engine Torque, Nm (lbf / ft) | 960 Nm (706 lb-ft) @ 1 500 rpm |
Net Power - Gear 1, kW (hp) | 135 kW (181 hp) |
Transmission Manufacturer and model | ZF 6WG190 |
Number Of Speeds - Forward | 6 |
Number Of Speeds - Reverse | 3 |
WEIGHTS | |
Operating Weight, kg (lbs) | 18 181 kg (40 082 lbs) |
Weight With Push Block & Ripper, kg (lbs) | 20 456 kg (45 296 lbs) |
Operating Weight - Maximum, kg (lbs) | 22 800 kg (50 265 lbs) |
OPTIONS | |
Reversing fan | Optional |
Fleetm@tic Telematics | Standard |
Automatic Turbo Spindown | Standard |
WHEELSET | Standard: 14.00R24 |
Optional: 17.5R25 | |
MOLDBOARD | Standard: 12 ft x 24 |
Optional: 14 ft x 24 |
